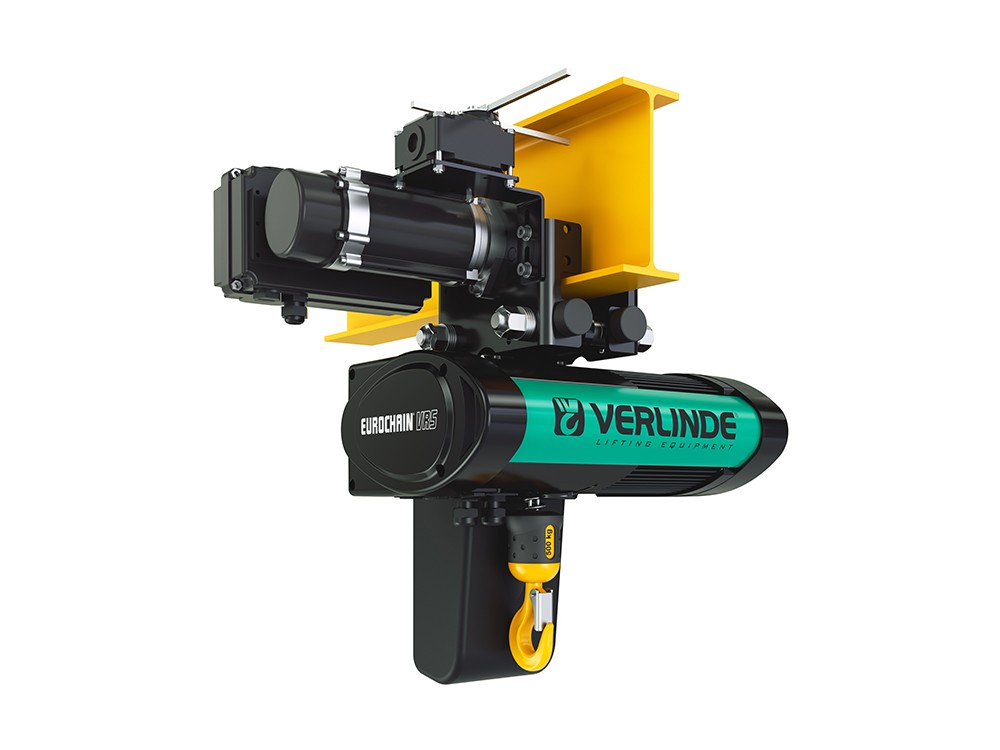

Electric Chain Hoist

Standard Equipment and Features of the "EUROCHAIN VX & VR" Series Lifting Capacity: 63–10,000 kg

Planetary Gearbox running in an oil bath — no gearbox oil changes required for the service life of the unit
Hoisting Motor with IP55 protection rating
Thermal Protection via a thermistor built into the hoist motor
5-pocket Load Wheel for smooth chain movement
Chain Collecting Box made from high-quality synthetic material
Lifting Hook made from high-grade steel, fitted with a safety latch
Zinc-Coated Load Chain, tested to European standards, with high precision and a tensile strength of 800 N/mm²
Chain Guide to keep the chain properly aligned around the load wheel
Electromagnetic DC Disc Brake system
2-step up/down Limit Switch
Friction-Type Torque Limiter to prevent overload lifting
80-micron Epoxy Coating on the hoist body for corrosion protection
Inverter-driven Cross-Travel Motor for safe, smooth, jerk-free movement
Push Button Control Box with IP65 protection rating, low-voltage control system (48V)

Electric Chain Hoist EUROCHAIN
