Ergonomically designed hook
(featuring a gripping area for convenient handling).

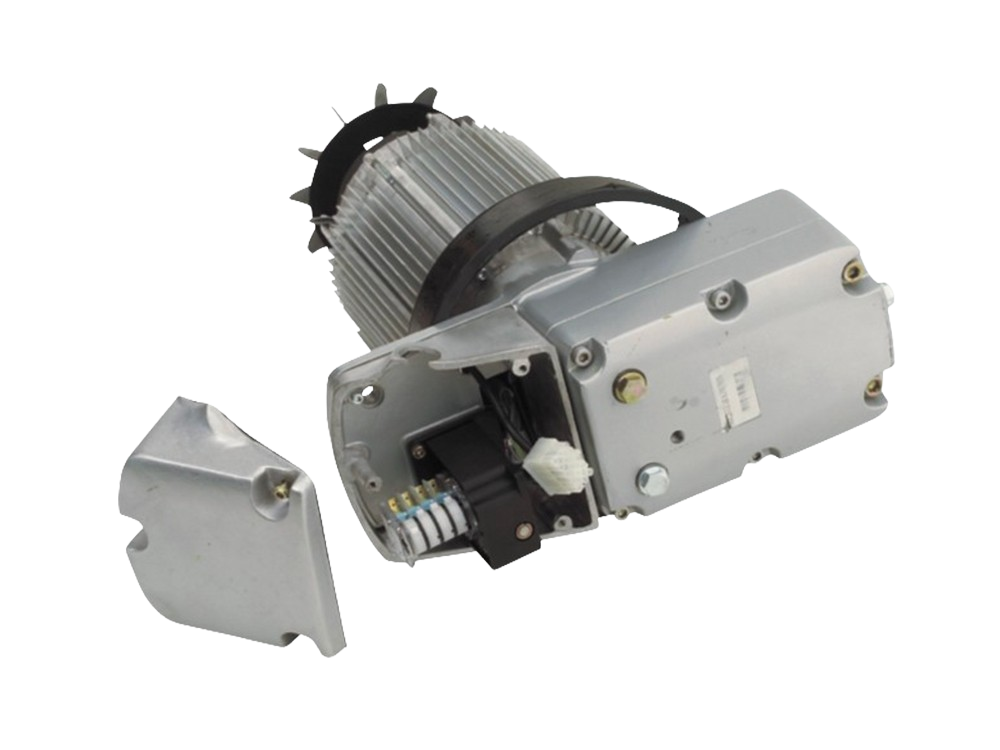

Equipped with a control unit that cuts off hoist operation when the hook reaches its
uppermost and lowermost positions (Upper and Lower Gear Limit Switch, 4-step).
Thanks to the oversized wire rope drum, the motor can be mounted inside the drum,
further increasing heat dissipation by 30% through a "tunnel effect." Push-button control unit fully sealed to IP65 standard (protected against dust and water splashes), operating on a 48-volt control circuit, and equipped with an EMERGENCY STOP button.
Push-button control unit fully sealed to IP65 standard (protected
against dust and water splashes), operating on a 48-volt control
circuit, and equipped with an EMERGENCY STOP button.
z-z1180841794225.png)
Motor and Gearbox Features

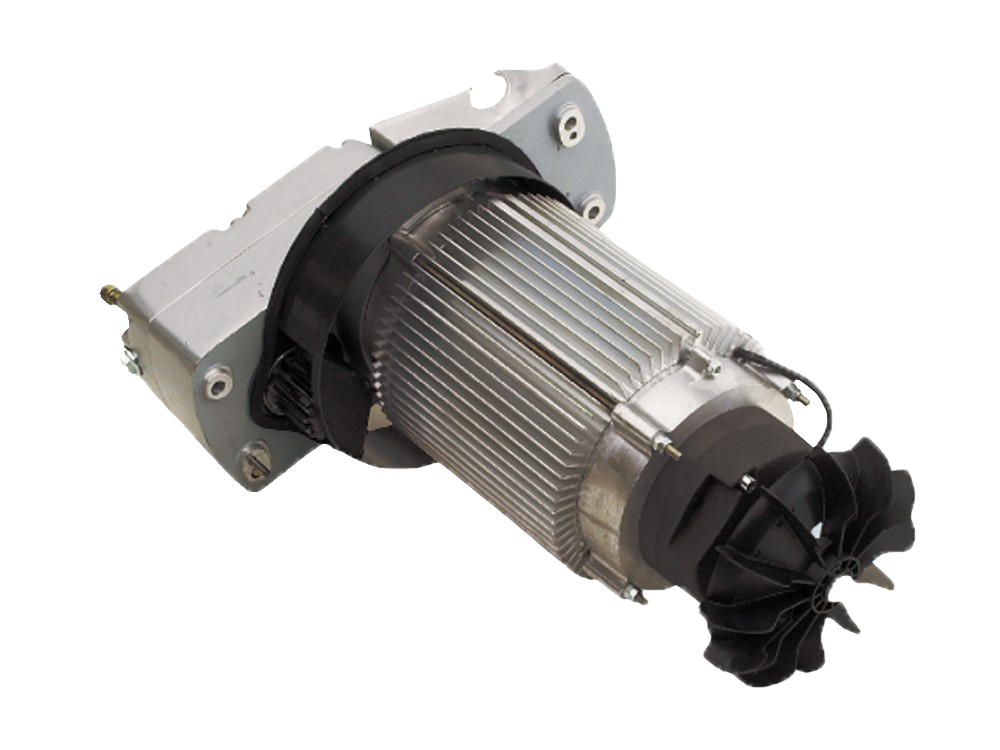

The motor is made of aluminum and features a cooling fan on the wire rope drum that boosts heat dissipation efficiency by up to 30%. The motor itself is fully enclosed to IP55 standard and uses a D.C. Disk Brake that requires no adjustment throughout its service life. The motor windings use Class F insulation, withstanding temperatures ofup to 155°C, and are fitted with a thermistor that cuts power when temperatures exceed 120°C. A phase protection system is also included to further enhance operational safety. The unit also comes with a 3-stage helical gearbox that is hardened and runs in an oil bath requiring no oil changes for the life of the unit.
z-z119708280023.png)

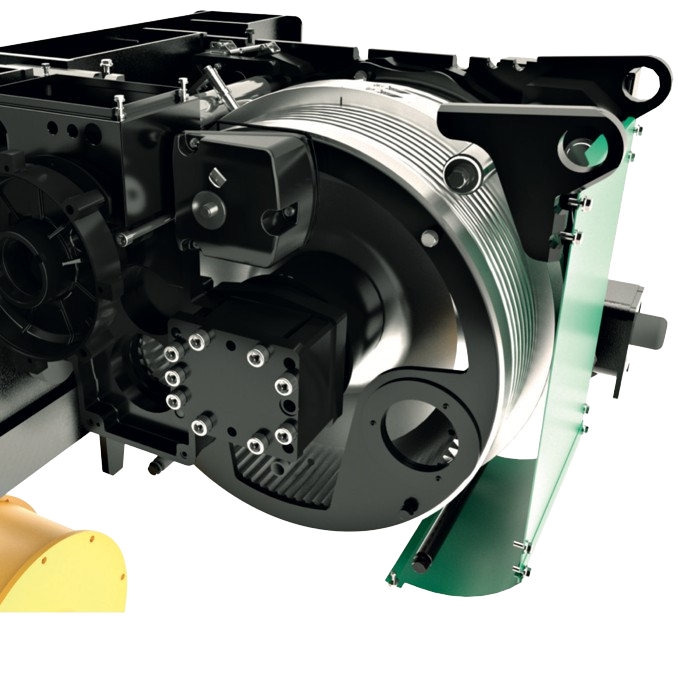

Extra-large wire rope drum, reducing stress on the wire rope to extend its service life.

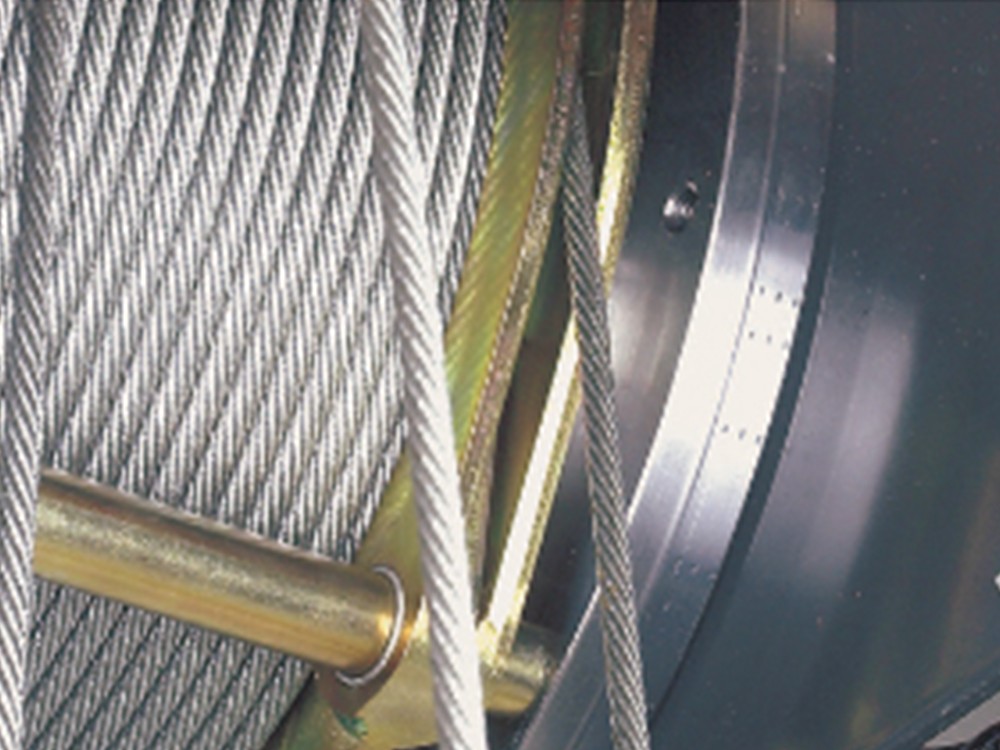

Equipped with a Rope Guide to ensure the wire rope winds correctly onto the drum, preventing overlapping, friction, or slipping out of the groove — helping to extend the rope's service

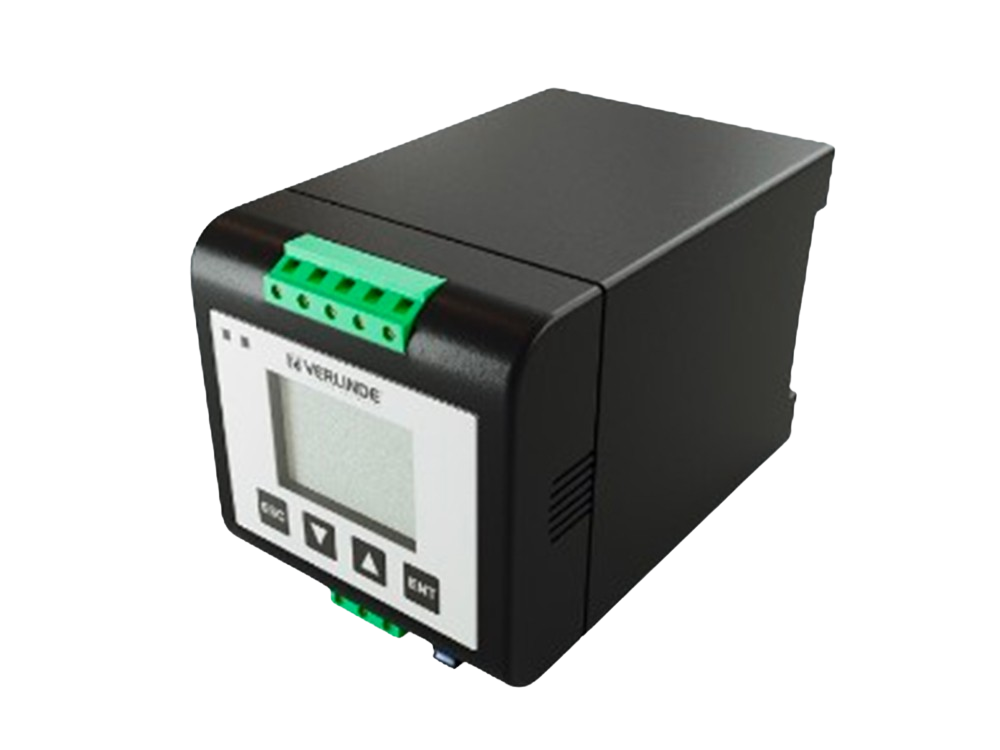

"EUROBLOC VT" comes equipped with a MONITOR system — an electronic control system that records the hoist's operating conditions, such as Safe Working Period (SWP), operating hours, number of starts, overload warnings, temperature, load weight, brake system status, and more — and is capable of calculating the Safe Working Period (SWP).
